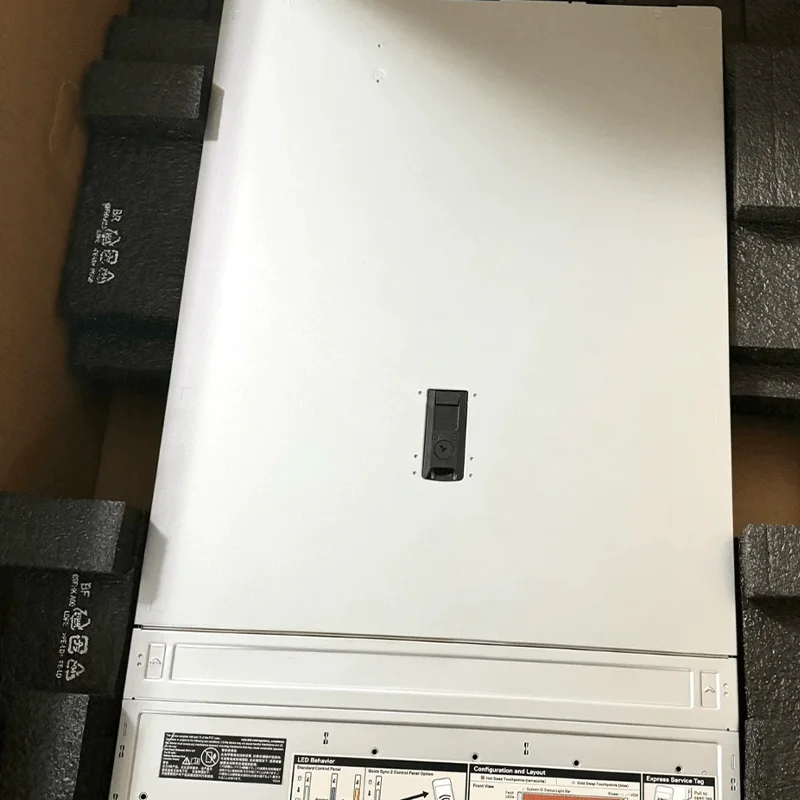

| Item | R7525 Poweredge 16 SAS/SATA+8NVME 24 Bays AMD EPYC 2u Rack Server |
| Type | 2U Dual Socket Rack Server |
| Processor | Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor |
| Memory | DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S |
| Storage Controllers | HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA Chipset SATA/SW RAID(S150): Yes PERC11 – H755, H755N |
| Drive Bays | Front Bays: Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD) Up to 12 x 3.5” SAS/SATA (HDD) Up to 16 x 2.5” SAS/SATA (SSD/HDD) The 24 x 2.5” SAS/SATA backplane won’t be available until April block Rear Bays: Up to 2 x 2.5” SAS/SATA (HDD/SSD |
| Power Supply | 800W Platinum
1400W Platinum 2400W Platinum |
1* AMD EPYC 7543 32 Cores 64 Threads
2*32GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8
PERC H755N (RAID controller for NVMe drives)
2 x 3.84TB NVMe SSD|24 x 2.5″ (NVMe Capable Backplane)
| Processors (CPU) | 1* AMD EPYC 7543 32 Cores 64 Threads |
| Memory (RAM) | 2*32GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8 |
| Storage Controller | PERC H755N (RAID controller for NVMe drives) |
| Storage Drives & Bays | 2 x 3.84TB NVMe SSD|24 x 2.5″ (NVMe Capable Backplane) |
| Boot Solution | BOSS-S2 2 x 480GB M.2 Sticks (RAID 1) |
| Networking | Broadcom 57412 Dual Port 10GbE SFP+ (OCP) |
| Power Supply | 1100W, Dual, Hot-Plug, Redundant |
| Management | Integrated 2U LCD Diagnostics Panel (bezel) |
